Product Details:
|
| Key Words: | Electric Heating 1200KG Siliver Aluminum Scrap Melting Furnace For Die Casting | Furnace Material: | Iron Steel & Insulation Layer |
|---|---|---|---|
| Color: | Siliver/blue Or Customized | Furnace Volume: | 1200 KG |
| Efficient Capacity: | 1000 KG | Source: | Electric |
| Highlight: | 1200KG Aluminum Melting Furnace,880mm Aluminum Melting Furnace,blue electric melting pot for aluminum |
||
Electric Heating 1200KG Siliver Aluminum Scrap Melting Furnace For Die Casting
1200KG Capacity Electric Heating Smelting Crucible Furnace
1. Scrap Melting Furnace Genernal Decsription
Scrap melting furnace is used in all foundries or aluminum die casting area. It can be designed to melting
scraps or aluminum slaggs
2. Scrap Melting Furnace Specification
| SN | Items | Data | Remarks | |
| 1 | Efficient furnace capacity kg (Al) | 515 | ||
| 2 | Melting Rate kg/h (Al) | 280 | Inside the crucible there is already have 1/3 molten aluminum. | |
| 5 | Maximum furnace temperature ℃ | 950 | ||
| 6 | Precision of molten aluminum temperature control ℃ | ≤± 5 | ||
| 7 | Temperature control mode | PID+Dual temperature control | ||
| 8 | Crucible type and size mm | OD 880, d 350mm, H 1000 |
BN800 Morgen |
|
| 9 | Furnace surface temperature rise ℃ | ≤50 | Except for the installation site of the heating tube, the discharge outlet and rising tube | |
| 11 | Power Source | Voltage V | 380 | |
| Frequency HZ | 50 | |||
| 12 | Air Pressure MPa | 0.5-0.7 | ||
3. Scrap Melting Furnace Types
| Type | CRL-300 | CRL-500 | CRL-600 | CRL-800 | CRL-1000 | CRL-1200 |
| Capacity | 191KG | 338KG | 515KG | 763KG | 952KG | 1062KG |

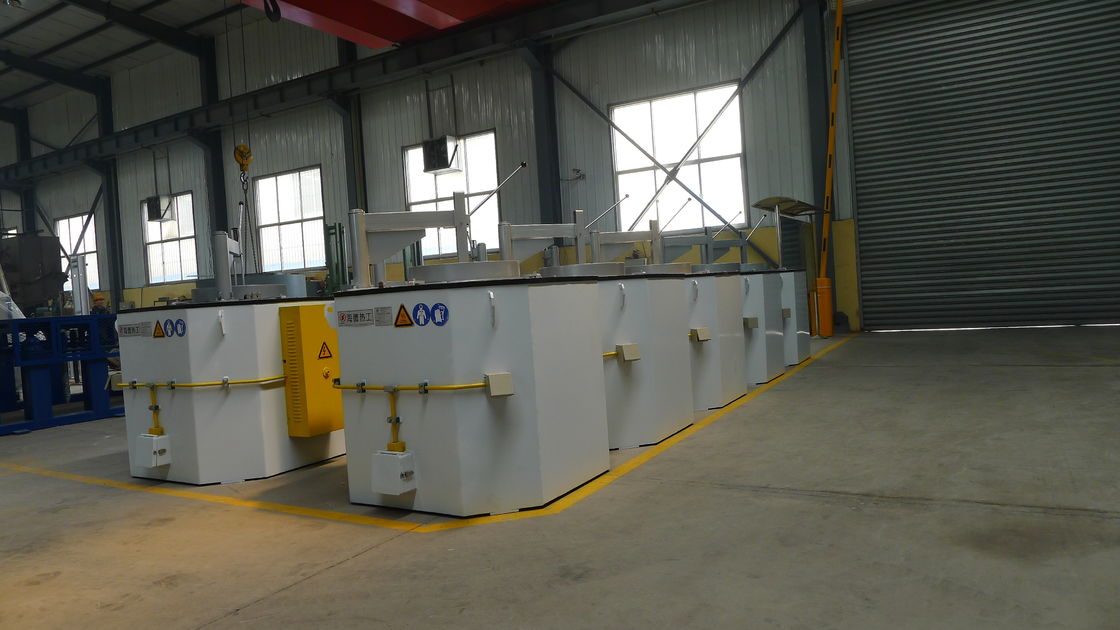

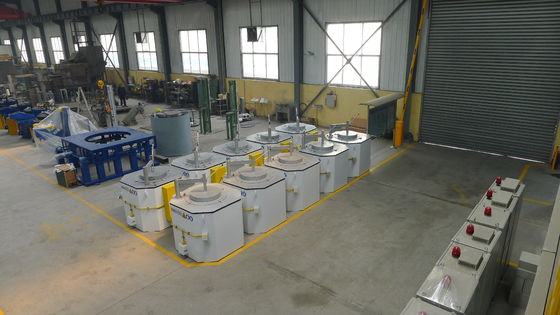

4. Scrap Melting Furnace At Site
5. Company Introduce
Hydeb focus on one industry -- "aluminum casting".
Hydeb has a complete product line of aluminum casting equipment, all products are independent research and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid hydrogen measurement, until aluminum solution aging treatment equipments.
Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
