Home ProductsAluminum Melting Furnace

600 KG Aluminum Melting Furnace

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

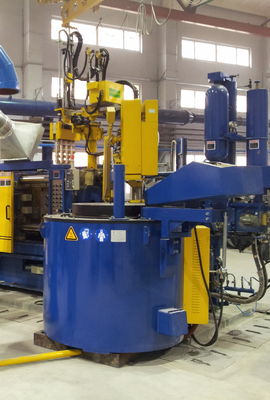

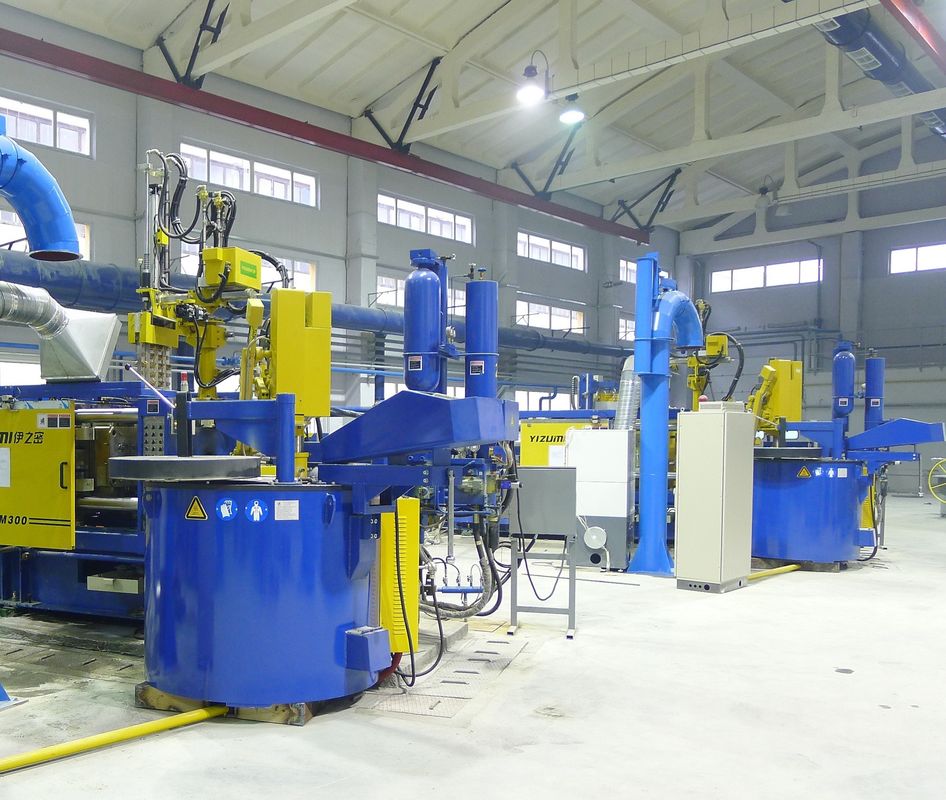

600 KG Aluminum Melting Furnace

600 KG Aluminum Melting Furnace
600 KG Aluminum Melting Furnace 600 KG Aluminum Melting Furnace

Large Image :  600 KG Aluminum Melting Furnace

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise
Model Number: CRL-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 20000-$50000/set
Packaging Details: Pallet or Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 20 sets per year

600 KG Aluminum Melting Furnace

Description
Keywords: Electricity Power 600KG Blue Aluminum Alloy Smelting Furnace For Alumium Alloy Die Casting Raw Material: Iron Steel & Insulation Layer
Color: Siliver Electric Brand: Siemens
Working Temperature: 800 ℃ Capacity Volume: 600 KG
High Light:

600 KG Aluminum Melting Furnace

,

240kg/h Aluminum Melting Furnace

,

800C gas furnace for melting aluminum

Electricity Power 600KG Blue Aluminum Alloy Smelting Furnace For Alumium Alloy Die Casting



600KG Capacity Electric Heating Smelting Crucible Furnace



1. Smelting Furnace Description



 The smelting furnace is used in all foundries or aluminum die casting area. It  smeltery for feeding holding furnaces
  or for direct casting.



  The smelting furnace low heat losses through high-quality insulation.



   And there is no exhaust system needed.



2. Smelting Furnace Mainly Specification



SN Items Data Remarks
1 Efficient furnace capacity kg (Al) 420 Not fixed
2 Melting Rate kg/h (Al) 240 Inside the crucible there is already have 1/3 molten aluminum.
5 Maximum furnace temperature ℃ 950
6 Precision of molten aluminum temperature control ℃ ≤± 5
7 Temperature control mode PID+Dual temperature control
8 Crucible type and size mm OD 880, d 350mm, H 1000

BN800

Morgen

9 Furnace surface temperature rise ℃ ≤50 Except for the installation site of the heating tube, the discharge outlet and rising tube
11 Power Source Voltage V 380
Frequency HZ 50

12 Air Pressure MPa 0.5-0.7



3. Smelting Furnace Furnace Types



Type CRL-300 CRL-500 CRL-600 CRL-800 CRL-1000 CRL-1200
Capacity 191KG 338KG 515KG 763KG 952KG 1062KG




4. Ready For Delivery





600 KG Aluminum Melting Furnace 0



5.  Our CE Certification



600 KG Aluminum Melting Furnace 1



6.  Company Introduce



Jinan Hydeb Thermal Tech Co., Ltd was established in January 2003, and now has 56 employees,among which there are
8 technical engineers.

The sales in 2020 is 50 million RMB.



Hydeb focus on one industry -- "aluminum casting".



Hydeb has a complete product line of aluminum casting equipment, all products are independent research and development,
manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid hydrogen measurement,
until aluminum solution aging treatment equipments.


7. FRQ


Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
